The factory boost control system on a 2008-2012 Subaru WRX or Subaru STI was engineered for stock hardware and stock boost targets, and it starts showing its limits the moment a build moves past that baseline. Boost fluctuation under load, inconsistent spool, and an inability to hold a precise target are common symptoms once a turbo upgrade, external wastegate, or aggressive tune enters the picture. The COBB 3-Port Boost Control Solenoid replaces the factory unit with something built specifically to solve that problem, and this post covers how it works, what it actually requires, and who genuinely needs it.
Why the Factory Boost Control System Runs Out of Room
Subaru’s factory boost control solenoid is a 2-port design tuned for a narrow, predictable range of conditions. It works fine within that range, but once a build introduces a bigger turbo, an external wastegate, or higher boost targets, the factory unit starts struggling to hold boost steady. The result shows up as boost spikes, fluctuation under sustained load, or a boost curve that never quite settles where the tune expects it to. The post on how boost control and forced induction work on WRX and STI covers this factory limitation in more depth, and it is the foundational context for why a 3-port solenoid exists in the first place.
What a 3-Port Design Actually Changes
A 3-port solenoid gives the ECU a more direct, more precise way to bleed off and regulate boost pressure compared to the factory 2-port setup. Rather than only being able to open or close a single path, a 3-port design allows the solenoid to actively regulate pressure through a dedicated bleed path, which is what actually produces the smoother, more repeatable boost curve this upgrade is known for. COBB’s version is built with 1/8 inch low-profile barb fittings, nickel coated for corrosion resistance, and Viton spools and seals throughout for long service life under the heat and vibration of an engine bay. The manual override is sealed with an O-ring, the wiring harness uses a waterproof grommet, and the solenoid wires are ultrasonically welded to the coil, all of which adds up to a unit that is fully sealed and safe to wash without the sensitivity some electronic components have to moisture. It is rated to operate up to 120 psi, well beyond what nearly any street or track build on this platform would realistically run.
Eliminating Boost Fluctuation, Not Just Raising the Ceiling
The real value of this upgrade is not raw boost capability, it is consistency. A solenoid that eliminates fluctuation gives a tune something stable and repeatable to build around, rather than the tune having to compensate for a boost curve that shifts run to run. This matters just as much on a car targeting stock boost with better control as it does on a build chasing higher boost, since a consistent baseline is what actually makes a tune safe and predictable in the first place. The post on what happens when you run too much boost on a WRX or STI covers why inconsistent boost delivery is often more dangerous than a high peak number, since an unpredictable spike is what actually causes engine damage more often than a steady, correctly tuned target.
Internal vs External Wastegate Configurations
How this solenoid gets plumbed depends on whether the turbo setup runs the factory internal wastegate or has already been upgraded to an external one, and the two configurations are not identical. An internal wastegate setup typically routes boost reference more simply, since the wastegate is already integrated into the turbo housing. An external wastegate setup requires more deliberate routing to reference boost pressure correctly at the wastegate itself, and getting that routing wrong can undermine the entire point of upgrading to a more precise solenoid in the first place. COBB’s included instructions cover both scenarios, but confirming which configuration applies to a specific build before starting the install avoids having to redo boost line routing partway through.
Installation and What’s Included
COBB designed this solenoid to mount in the stock location and plug directly into the stock wiring harness, which keeps the physical install and electrical connection straightforward. The kit includes a custom aluminum mounting bracket, stainless steel hardware, boost line to complete all connections, and zip ties to route everything neatly through the engine bay. Installation instructions cover routing for both internal and external wastegate configurations, so the same solenoid works whether the turbo setup uses the factory internal wastegate or has already been upgraded to an external one.
Tuning Is Not Optional With This Part

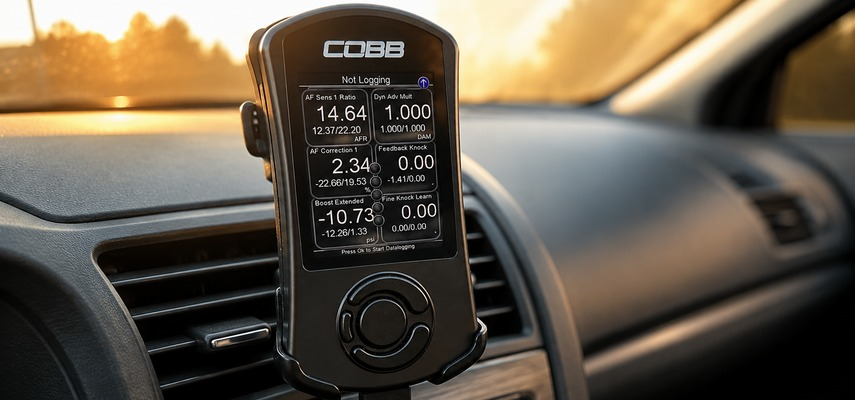

This is worth being direct about. Installing this solenoid without a corresponding tune update does not deliver its intended benefit and can leave boost control worse than the factory setup rather than better. COBB provides off-the-shelf maps built around this exact solenoid, which covers the tuning requirement without needing a fully custom tune from a professional tuner, but a tune of some kind is required regardless. The post on COBB Accessport for WRX and STI, what it does and is it worth it covers how the Accessport handles exactly this kind of tuning requirement, and it is the tool most owners use to load the off-the-shelf map this solenoid needs to function correctly.
Who Actually Needs This Upgrade
A mildly modified WRX or STI running close to stock boost with a properly functioning factory boost control system rarely needs this upgrade. It becomes genuinely valuable once a build adds a bigger turbo, an external wastegate, or targets boost levels where the factory solenoid’s limitations start showing up as real drivability or tuning problems. The post on supporting mods required for big turbo WRX builds covers where a boost control solenoid upgrade fits into that broader supporting parts list, since it is exactly the kind of component that matters far more than its price tag once a build gets serious about turbo upgrades.
Boost Control and Turbo Protection Work Together
Precise boost control also plays a role in protecting the turbo itself. The post on does an aftermarket blow off valve actually change how your turbo performs covers a related component that also contributes to stable, predictable boost delivery, and the two upgrades address complementary parts of the same underlying goal, consistent, controlled boost rather than a system fighting itself under load. Turbo bearing wear from surge and boost inconsistency from a struggling factory solenoid are both symptoms of the same root issue, a boost system that is not being controlled precisely enough for the hardware installed.
The WRX turbo and airflow upgrades hub and STI turbo and airflow upgrades hub both cover how a boost control solenoid fits alongside turbo, wastegate, and tuning decisions on either platform.
Frequently Asked Questions
Does this solenoid fit my WRX or STI?
This specific version fits 2008-2012 WRX and 2008-2012 STI Hatch, along with 2011-2012 STI Sedan. COBB sells other versions of this same solenoid for other model years, so confirming the exact year range against the current listing before ordering matters.
Do I need a tune to install this solenoid?
Yes. Installing it without a corresponding tune update does not deliver its intended benefit. COBB provides off-the-shelf maps built around this solenoid, covered in the Accessport post, which handles this requirement without needing a fully custom tune.
Does this solenoid work with an external wastegate setup?
Yes. Installation instructions cover routing for both internal and external wastegate configurations, so the same solenoid supports either setup, though the actual boost line routing differs between the two.
Is this upgrade necessary on a mildly modified car running stock boost?
Generally not. It becomes genuinely valuable once a build adds a bigger turbo, an external wastegate, or targets boost levels where the factory solenoid’s limitations start causing real tuning or drivability problems.
Can this solenoid be installed without upgrading anything else on the turbo system?
Yes, mechanically it can be installed on its own. Whether it delivers meaningful benefit on an otherwise stock turbo system depends on whether the factory solenoid was actually the limiting factor, which is more often the case on modified builds than stock ones.
